Suzuki F10A 465 engine
|
|
| 型號︰ | F10A |
| 品牌︰ | suzuki |
| 原產地︰ | 中國 |
| 單價︰ | CNY ¥ 4800 / 件 |
| 最少訂量︰ | 1 件 |
|
|
|
|
|
|
|
|
Model
|
F10A
|
|
type
|
Four strokes, water-cooling,In line,SOHC,carburetor,Overhead Camshaft,Belt Drive
|
|
bore
|
65.5 mm
|
|
Stroke
|
72 mm
|
|
Compression ratio
|
8.8
|
|
Displacement
|
0. 97 L
|
|
Net power
|
34Kw（5500+-50rpm）
|
|
Max.torque
|
70N.m(3000 rpm ~4000rpm)
|
|
Min.oil consumption
|
299 g/kW.h
|
|
Rotation speed
|
5500 rpm
|
|
idling
|
900+-50 rpm
|
|
Emssion
|
CO<3.5x10 HC<800x10
|
|
Dims.
|
990x691x424 mm（with 5 gears transmission）
|
|
Net weight
|
124 kg(with transmission)
|
|
transmission
|
ration
|
5gears
|
|
1gear
|
3.652
|
|
2gear
|
1.9478
|
|
3gear
|
1.424
|
|
4gear
|
1.000
|
|
5gear
|
0.9754
|
|
reverse
|
3.466
|
|
weight
|
26 kg
|
|
|
|
|

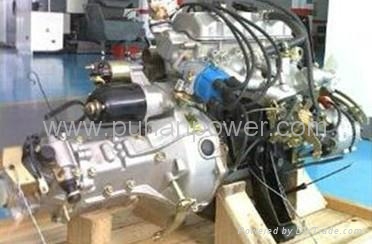

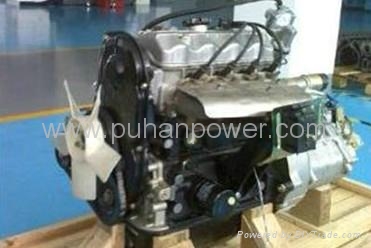

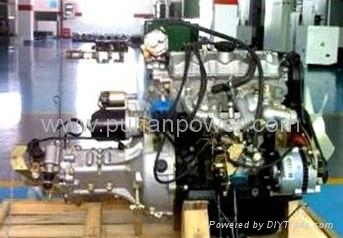

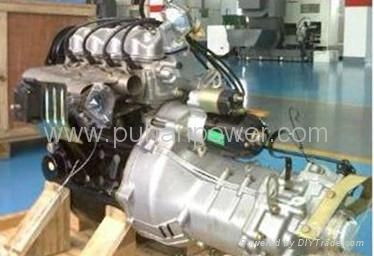

產品圖片
|
|
|
